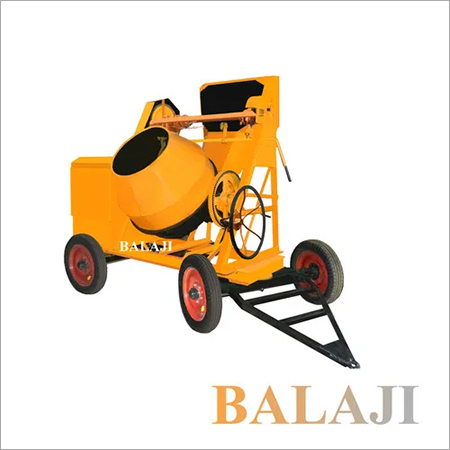

Hopper Concrete Mixer

Hopper Concrete Mixer
Hopper Concrete Mixer
Product Code : 03
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • FOB Port
  • Mundra
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cheque
  • Supply Ability
  • 100 sets Per Month
  • Delivery Time
  • 15 Days
  • Packaging Details
  • As Per Requirement
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • CE Mark,ISO9001:2008 certification
Product Description

We have the acumen and experience to manufacture, supply and export Hopper Concrete Mixer. Widely used for mixing concrete, these products find application in road and building construction. Known for their effective and smooth functioning, these products have gained a high demand in the international market. With the help of our quality team, we are able to provide the clients with an unmatched range of these products. Hopper Concrete Mixer is delivered to the clients in a stipulated time period owing to our wide distribution network.

Specifications:

  • Model : Hopper Concrete Mixer (10/7 CFT 1 Bag)
  • Transmission : Drive from the engine is provided with roller chain & sprockets.  The drive to loader shaft is through a cone clutch & chain.  The machine can be operated by Diesel Engine or Electric Motor.
  • Power : 8 H.P. 1000 R.P.M.  Air Cooled Diesel Engine Or 5 H.P.,  415 V 50 Hz 3 Phase, 960 R.P.M.  Elec. Motor
  • Mixing Drum : Heavy duty C.I. casting with bearings & M. S. blades for efficient mixing
  • Approx Dimension : Length 9' 6",  Width 5' 6", Height 9' 5", Weight 1500 kg
  • Handling : Pneumatic tyre with roller bearing with excel shaft

Capacity

10/7 CFT or 1 bag

Prime mover

8 HP Air cooled diesel engine 1000 rpm or 5 HP Electric motor 960 rpm

Hopper

Hydraulically operated hopper made of 3.15mm M.S Plate

Hydraulic system

Single action hydraulic jack single spool with manually operated valve, ISI Market hose pipes of circulate the oil

Mixing Drum

Heavy duty C.I. Lower drum with drum cone of 3.15mm M.S plate and heavy duty M.S blades for Effective mixing

Yoke

Bearing system, made of C.I. Or 100x50mm

Drum type

Titting type

Wheels

500x19 pneumatic type with hub & bearing system

Chassis

Heavy duty M.S 125x65mm channel chassis

Weight

1350 kg
