Home » Products » Suspended Platform » Suspended Platform

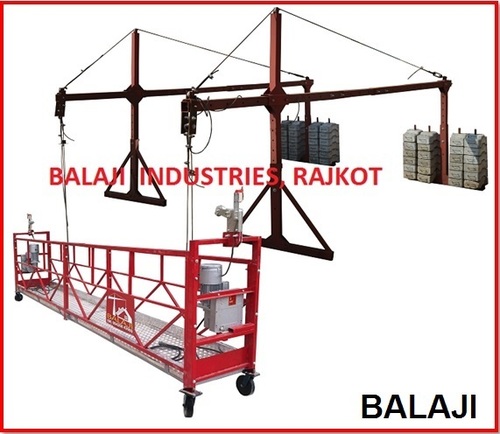

Suspended Platform

Suspended Platform
Suspended Platform
Product Code : 06
Brand Name : balaji
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • FOB Port
  • mundra
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 50 Per Month
  • Delivery Time
  • 30 Days
  • Packaging Details
  • As per Requirement
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • CE ,ISO9001:2008 certification
Product Description

We have acquired the acumen and experience to manufacture, supply and export Suspended Platform. Made of high quality raw materials that are supposed to be the best in the market, these products have smooth and effective performance. Checked by our team of quality analyzers, these products are absolutely free of defect. Known for their longer service life and low maintenance, these products have gained the high demand of our global clients. Suspended Platform is packed in special packaging material so as to ensure its safe and secure transit.

Other details:

Suspended Working Platform / Swing Stage / Cradle


Temporarily Installed Suspended Access Equipment, also known as Suspended Platform or Temporary Access Equipment, is a kind of construction machinery for high-rise construction. It's a lightweight rigid Steel/Aluminum made object capable of carrying persons onto a certain height so as to facilitate the aerial work.


ZLP series platforms developed and produced by are CE certified and provide safer, easier and more efficient work platforms for your workers. They are ideal for plaster, painting, repairing, decoration, cleaning, elevator installing, loading heavy row materials to higher grounds, etc.  It is also widely used in the construction works of big-size tank, bridge, dam and chimney.

Our suspended platform machinery helps improve working efficiency, and fast construction at reduced cost.  Along with standard platforms we also manufacture Special Suspended Working Platforms with 90 degree, 45 degree and Circular shapes.  We can also manufacture platforms as per client's specific requirements.

TechnicalSpecification













Model Type

ZLP630

ZLP800 a Type

ZLP800 S Type

ZLP1000

Rated Load Capacity (kg)

630

800

800

1000

Rated Lift Speed (m/min)

9~11

8

8~10

8~10

Length of Platform (m)

6

7.5

7.5

7.5

Wire Rope Diameter

8.3 mm, 4*31SW+Fc

8.6 mm, 6*19+IWS

8.6 mm, 6*19+IWS

8.6 mm, 6*19+IWS

Hoist

Model Type

LTD 6.3

LTD 8

LTD 8

LTD 10

Rated Lift Force (KN)

6.17

7.84

7.84

9.8

Motor

Power (KW)

1.5

1.8

2.2

3

Voltage

415 V 50 Hz
3-Phase

415 V 50 Hz
3-Phase

415 V 50 Hz
3-Phase

415 V 50 Hz
3-Phase

Frequency (Hz)

50

50

50

50

Rotate Speed (rpm)

1420

1420

1420

1420

Breake Torque (KN)

15

15

15

15

Safety Lock

Permissible Force of Impact (kN)

30

30

30

30

Fall Distance Permitted (mm)

< 100

< 100

< 100

< 100

Tilt Angle Permitted



3° ~8°



3° ~8°

3° ~8°

Suspension Mechanism

Projecting Length of the Front Beam (m)

1.3~1.7

1.3~2

1.3~2

1.3~2

Adjustable Height of the Support Beam (m)

1.35~2

1.35~1.7

1.35~1.7

1.35~1.7

Weight

Steel / Aluminum Platform (kg)

450 / 300

500 / 400

560 / 400

600 / 450

Suspension Mechanism (kg)

360

360

360

360

Counter Weight (kg)

900

1000

1000

1300
