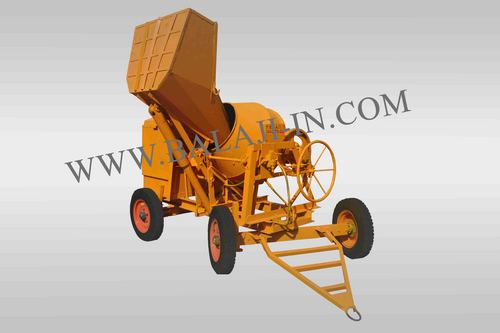

Hydraulic Concrete Mixer Machine

Hydraulic Concrete Mixer Machine
Hydraulic Concrete Mixer Machine
Product Code : 02
Brand Name : balaji
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • FOB Port
  • Mundra
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cheque
  • Supply Ability
  • 100 sets Per Month
  • Delivery Time
  • 15 Days
  • Packaging Details
  • As Per Requirement
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • CE Mark,ISO9001:2008 certification
Product Description

Owing to the immense support from our team, we are able to manufacture, supply and export Hydraulic Concrete Mixer Machine. These products find application in construction industry for effectively mixing cement and other ingredients for making concrete. In order to ensure their premium quality, these products have flawless and unmatched quality. Hydraulic Concrete Mixer Machine is packed in special packaging material so as to ensure its safe and secure transit.

Other details:

Model : Hydraulic Concrete Mixer (10/7 CFT 1 Bag)

Transmission : Drive from the engine is provided with roller chain & sprockets.  The drive to loader shaft is through hydraulic jack.  The machine can be operated by Diesel Engine or Electric Motor.

Power : 8 H.P.  1000 R.P.M.  Air Cooled Diesel Engine

                Or 5 H.P.,  415 V 50 Hz 3 Phase, 960 R.P.M.  Elec. Motor

Mixing Drum: Heavy duty C.I. casting with bearings & M. S. blades for efficient mixing

Approx Dimension: Length 9' 6",  Width 6' 8", Height 9' 5", Weight 1350 kg

Handling : Pneumatic tyre with roller bearing with excel shaft



Capacity

10/7 CFT or 1 bag

Prime mover

8 HP Air cooled diesel engine 1000 rpm or 5 HP Electric motor 960 rpm

Hopper

Hydraulically operated hopper made of 3.15mm M.S Plate

Hydraulic system

Single action hydraulic jack single spool with manually operated valve, ISI Market hose pipes of circulate the oil

Mixing Drum

Heavy duty C.I. Lower drum with drum cone of 3.15mm M.S plate and heavy duty M.S blades for Effective mixing

Yoke

Bearing system, made of C.I. Or 100x50mm

Drum type

Titting type

Wheels

500x19 pneumatic type with hub & bearing system

Chassis

Heavy duty M.S 125x65mm channel chassis

Weight

1350 kg
