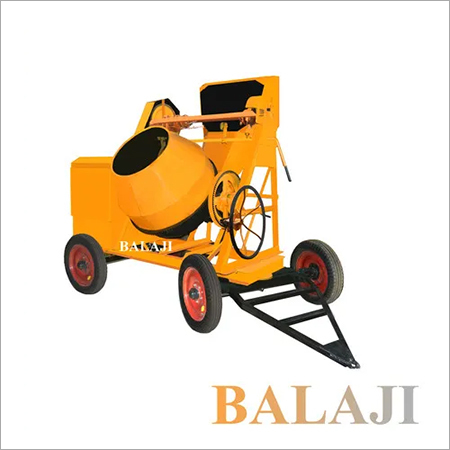

Concrete Mixer With Hopper

Concrete Mixer With Hopper Specification

Product Type
Concrete Mixer With Hopper

Material
Steel

Type
Cement Mixer

Weight (kg)
1500 Kilograms (kg)

Computerized
No

Automatic
No

Control System
Manual

Cooling System
Hydraulic Oil Cooling

Method
Hydraulic Pressure

Color
Orange

Concrete Mixer With Hopper Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mundra

Supply Ability
100 Pieces Per Month

Delivery Time
15 Days

Packaging Details
As Per Requirement

Main Domestic Market
West India, Central India, East India, South India, North India, All India

Certifications
CE Mark,ISO9001:2008 certification

About Concrete Mixer With Hopper

Concrete Mixer With Hopper

We have the acumen and experience to manufacture, supply and export Hopper Concrete Mixer. Widely used for mixing concrete, these products find application in road and building construction. Known for their effective and smooth functioning, these products have gained a high demand in the international market. With the help of our quality team, we are able to provide the clients with an unmatched range of these products. Hopper Concrete Mixer is delivered to the clients in a stipulated time period owing to our wide distribution network.

Specifications:

Model : Hopper Concrete Mixer (10/7 CFT 1 Bag)
Transmission : Drive from the engine is provided with roller chain & sprockets. The drive to loader shaft is through a cone clutch & chain. The machine can be operated by Diesel Engine or Electric Motor.
Power : 8 H.P. 1000 R.P.M. Air Cooled Diesel Engine Or 5 H.P., 415 V 50 Hz 3 Phase, 960 R.P.M. Elec. Motor
Mixing Drum : Heavy duty C.I. casting with bearings & M. S. blades for efficient mixing
Approx Dimension : Length 9' 6", Width 5' 6", Height 9' 5", Weight 1500 kg
Handling : Pneumatic tyre with roller bearing with excel shaft

Capacity	10/7 CFT or 1 bag
Prime mover	8 HP Air cooled diesel engine 1000 rpm or 5 HP Electric motor 960 rpm
Hopper	Hydraulically operated hopper made of 3.15mm M.S Plate
Hydraulic system	Single action hydraulic jack single spool with manually operated valve, ISI Market hose pipes of circulate the oil
Mixing Drum	Heavy duty C.I. Lower drum with drum cone of 3.15mm M.S plate and heavy duty M.S blades for Effective mixing
Yoke	Bearing system, made of C.I. Or 100x50mm
Drum type	Titting type
Wheels	500x19 pneumatic type with hub & bearing system
Chassis	Heavy duty M.S 125x65mm channel chassis
Weight	1350 kg
